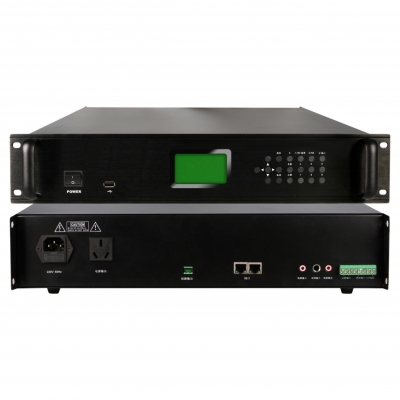

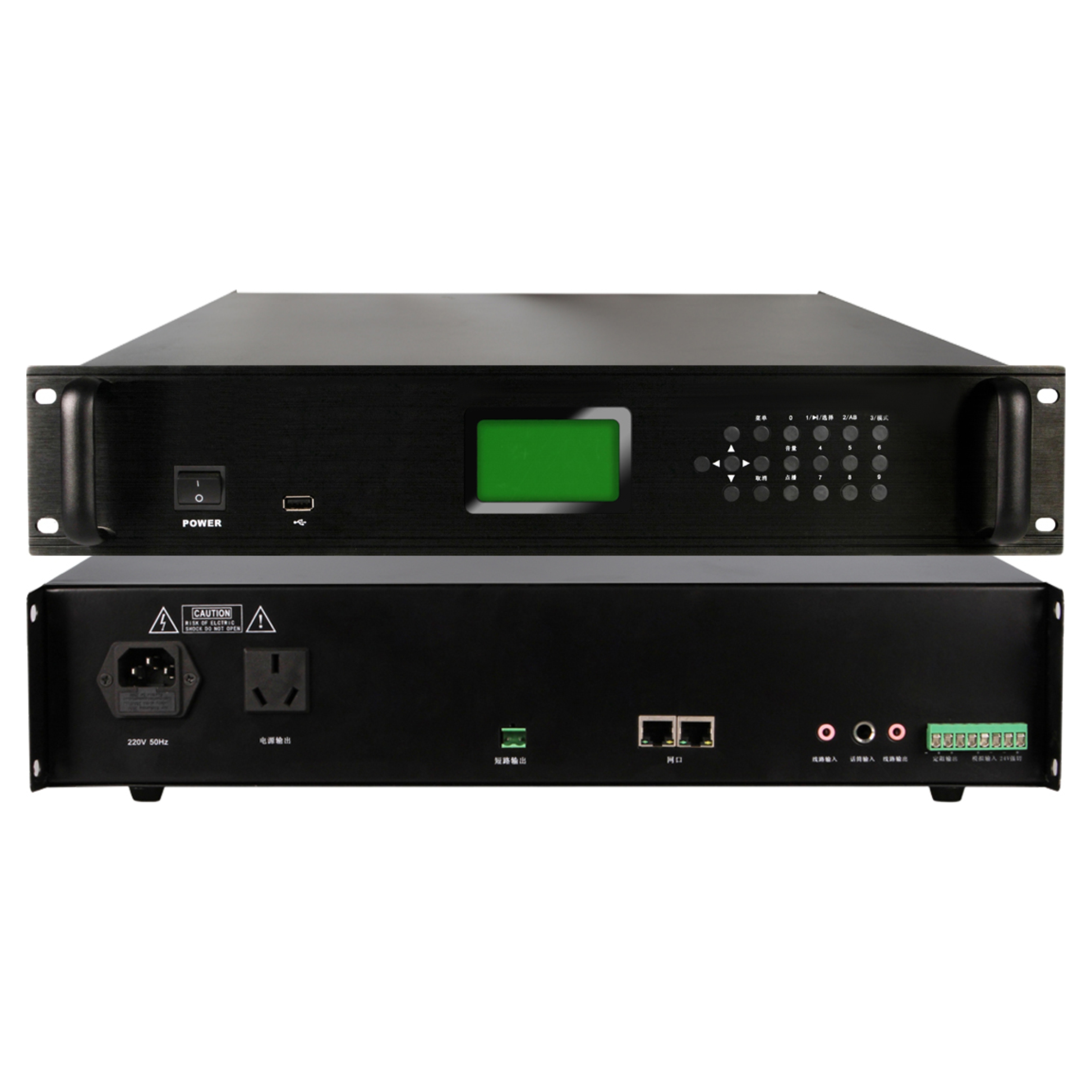

Decoding terminal EV-9002

1. Rack-type design, 3-inch bright LCD display (128*64), multi-function light touch selection button. It has the function of receiving broadcast and calling broadcast.

2. Audio adopts hard decoding form, 16-bit audio stereo CD sound quality, built-in hardware decoding chip, realize local real-time signal acquisition function and audio decoding function, support USB playback.

3. The panel is integrated with 19-bit operation keys, which can demand audio files in the server and adjust the Settings of fast forward, fast rewind, play, pause and so on. It has a variety of playback modes such as sequential loop.

4. 1 local microphone, 1 local line input, 1 line output, with 2*20W power amplifier output, can be connected to the external resistance speakers.

5. 1 circuit short circuit output (external control of power sequence, or linkage control)

6. Standard 2-way 10/100M RJ45 network switch interface, support LAN WAN.

7. The standby time of the terminal can be set from 1-99 minutes, which is convenient for the user to decide how long to turn off the power amplifier after the completion of the scheduled task according to the situation.

8. (optional) can be equipped with TF card, in the card backup ringing task, in case of network shutdown to achieve the timing task

9. (Optional) Remote control is available. With 12 buttons, it is used for wireless remote control broadcast program, and the remote control distance can be up to 1000 meters without obstacles.

10. (optional) can be equipped with 24V strong cut output module, for fire emergency broadcast to open the sound control switch.

11. Product size: 485*88*345mm
